A Beautiful Zero-Trust File Pipeline

(with Syncplify Server! v7 and R2FS! v1)

Every once in a while, a customer deployment comes along that makes us stop and say:

“Yes. This is exactly what these features were built for.”

Recently, one of our enterprise customers shared a planned architecture for a secure file-transfer workflow using Syncplify Server! v7 together with Syncplify R2FS!, and we were genuinely impressed by how clean, safe, and flexible the design is.

With their permission (and with all identifying details removed), we’re sharing this use-case because it perfectly demonstrates how Syncplify’s VFS, Virtual Folders, SyncJS, and R2FS! can be combined to build a zero-trust ingestion pipeline without any extra middleware... and without exposing internal storage to the network.

The Problem

The customer needed to solve a very common (yet very tricky!) requirement:

• External clients must upload files

• Files must be scanned before reaching internal storage

• Internal storage must never be exposed directly

• Outbound files must still be accessible immediately

• Upload workflows may use temp files, renames, or staging folders

• The storage subnet must not accept inbound connections

• No NAT or port-forwarding to internal storage should be required

In other words: Allow file transfers, but never trust them, and never expose the backend.

The Key Idea

Instead of letting users write directly to backend storage, the customer designed a pipeline where:

1. Files land on the Syncplify Server! local disk

2. A script scans them

3. Only clean files are moved to backend storage via R2FS!

4. Backend storage is exposed back to the user as read-only

This turns Syncplify Server! into a security gate, and R2FS! into a secure outbound bridge to internal storage.

The crucial detail here is that R2FS! connects outbound from the storage side, meaning:

• No inbound firewall rules are required

• No NAT is required

• No port forwarding to the storage network

• The storage subnet remains completely private

This is the main reason R2FS! exists.

You can read more about this architecture here:
https://www.syncplify.com/syncplifyr2fs

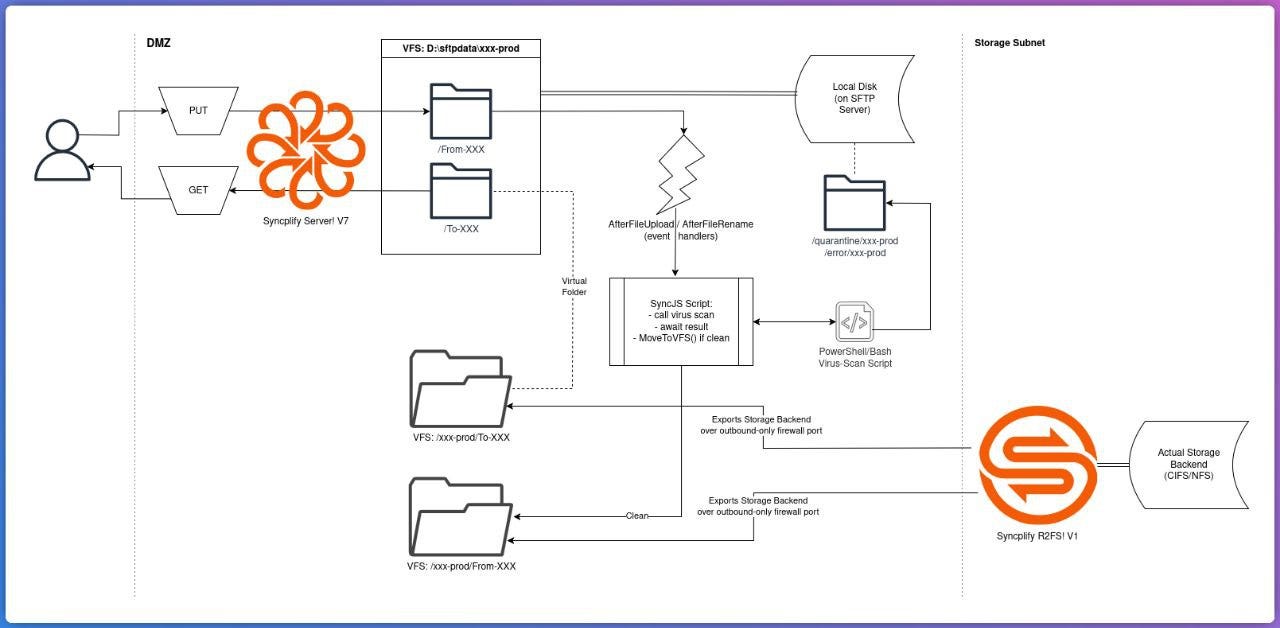

High-Level Architecture

At a high level, the system works like this:

• Users upload into a staging area on Syncplify Server!

• Event handlers trigger scanning

• Clean files are copied to an R2FS! VFS

• R2FS! delivers them to internal storage through an outbound-only connection

• Internal storage is exposed back to the user as outbound folder

The most important rule in this design is: No file can ever reach internal storage unless the script allows it, and the storage network never accepts inbound connections.

Why R2FS! Is Critical Here

In a traditional setup, the Syncplify host would need direct access to backend storage via:

• SMB/CIFS

• NFS

• mounted disk

• VPN

• port forwarding

• firewall rules

All of these increase the attack surface.

With Syncplify R2FS!, the model is reversed.

The storage system connects outbound to Syncplify Server!, not the other way around.

This provides several major security benefits:

• No inbound connectivity to the storage subnet

• No NAT rules required

• No port forwarding required

• Storage can sit behind a strict firewall

• Backend can even be in a different network zone

• Syncplify Server! never needs direct file-system access to the actual data storage

This makes R2FS! ideal for:

• DMZ-to-internal storage bridges

• zero-trust architectures

• segmented networks

• high-security environments

Exactly the scenario this customer implemented.

Using Virtual Folders to Separate Inbound and Outbound

The user’s home directory is built using:

• Local disk VFS for inbound files

• R2FS! VFS injected as a virtual folder for outbound files

This ensures:

• Uploads go only to staging

• Internal storage is read-only for the user

• Backend storage is never written directly

Because virtual folders currently mount entire VFS objects, the customer created two VFS per customer:

• one for inbound staging

• one for outbound R2FS!

This is only a convenience limitation, not a functional one, and the design remains very clean.

Handling Real-World Upload Workflows

Real clients rarely upload files in one step.

Common patterns include:

• .tmp during upload

• write -> rename

• upload to /temp

• move after complete

If scanning runs too early, the file is incomplete.
If scanning runs too late, unsafe data could pass through.

The solution was to trigger the script on:

• AfterFileUpload

• AfterFileRename

and ignore temporary files.

Example logic:

• Ignore .tmp

• Ignore /temp/

• Scan only finalized files

This ensures scanning runs exactly once, at the right time.

SyncJS Automation + External Scanner

The entire secure move to backend storage is handled with SyncJS, including calling an external scanning tool.

Example script:

var originVfs = GetCurrentVFS();

if (originVfs == null) {
  Exit();
}

var fname = Session.GetRelPath();

// ignore temp files

if (fname.endsWith(”.tmp”) || fname.indexOf(”/temp/”) >= 0) {
  Exit();
}

// run external scanner (example)

var scan = Run(”powershell.exe”, “-File C: \\scripts\\ scan.ps1\”“ + fname + “\”“);

if (scan.ExitCode != 0) {
  Log(”Scan failed, file not accepted”);
  Exit();
}

var recipientVfs = new VirtualFSByName(”r2fs_vfs1”);

if (recipientVfs != null) {
  var resp = originVfs.CopyToVFS(fname, recipientVfs, fname);
  if (resp.Ok()) {
    Log(”File copied to R2FS VFS”);
  } else {
    Log(”Error: “+resp.ErrorMsg());
  }
}

This script:

• avoids uploads that are not yet complete

• runs an external scan

• copies only clean files

• sends them to the R2FS! VFS

• lets R2FS! deliver them to internal storage

No middleware required.

Security Properties of This Design

This architecture guarantees:

• No un-scanned file reaches backend storage

• Internal storage never accepts inbound connections

• No NAT or port forwarding required

• Syncplify is the only exposed service

• Backend stays isolated

• Any scanner can be used

• Upload workflows remain compatible

• Outbound files are immediately visible

This is effectively a zero-trust file gateway built entirely with Syncplify software.

Where This Pattern Works Best

This architecture is ideal for:

• Media ingest pipelines

• Broadcast / MAM systems

• Financial data exchange

• Healthcare file intake

• Government secure transfers

• Segmented enterprise networks

• Air-gapped storage environments

• Zero-trust infrastructure

Final Thoughts

We love seeing customers use Syncplify products this way.

This deployment combines:

• Virtual File Systems

• Virtual folders

• SyncJS scripting

• Event handlers

• External scanning

• R2FS! outbound storage bridge

to create a secure, elegant, and fully automated file pipeline, without adding extra servers, without opening firewall holes, and without exposing internal storage.

Exactly the kind of architecture these features were designed for.
